      How to Enable Barcode Reader in DPOS (For Scanning Item Codes via Orders Screen)

      Using a barcode scanner in DPOS helps you speed up order taking and reduce manual entry errors. Follow these steps to properly set up and test a barcode reader in your system.



      ✅ Log in to DPOS
      Sign in using your DPOS username and password.

      ✅ Create a System Backup

      • Go to Utilities.

      • Click Backup/Restore to save a copy of your current setup.
        📌 Tip: Always back up before making system changes.

      ✅ Check Global Barcode Settings

      • Navigate to Maintenance > Global Settings.

      • Ensure the following values are present and configured:

        • Barcode Delay

        • Barcode Delay2

        • Barcode Delay3

        • Barcode Timeout

      ✅ Prepare Your Scanner

      • Connect a Windows-compatible USB barcode scanner to your POS terminal.

      • Ensure the scanner is recognized by your system.

      ✅ Enable Barcode Reader Setting

      • Go to Maintenance > Settings.

      • Locate and enable the Barcode Reader option in global settings.

      ✅ Assign Barcodes to Items

      • In Maintenance, select Item Barcode.

      • Input and assign barcode numbers to relevant items in your menu.

      ✅ Test the Barcode Function

      • Open the Order Taking screen.

      • Use your barcode scanner to scan a registered item.

      • Confirm that the correct item appears on the screen.



      Note: Item scanning works best for pre-packaged goods like beverages, ready-made desserts, snacks, and confectionery items.

      Step-by-Step Instructions

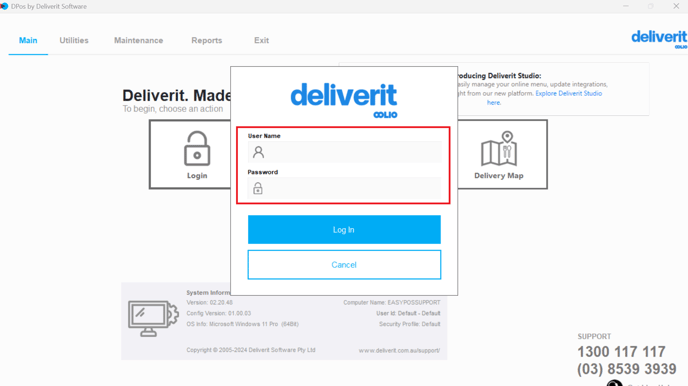

      Log in to DPOS

      Sign in using your username and password.

      1


      Create a Backup

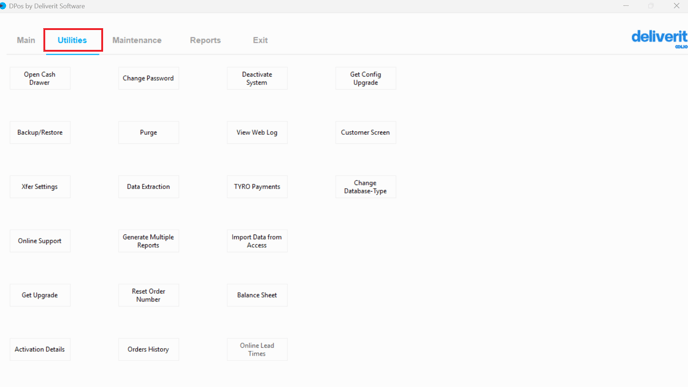

      • Navigate to the Utilities section.
      2

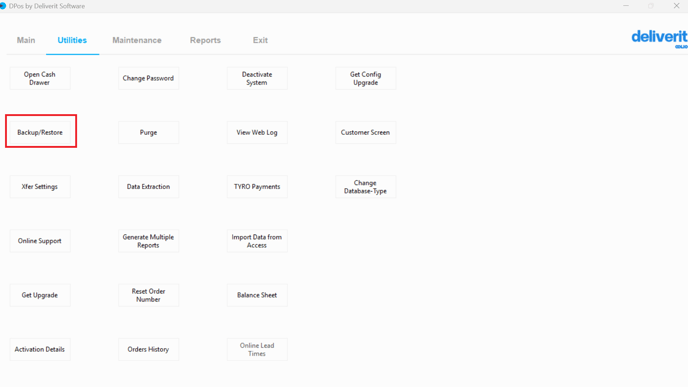

      • Click Backup/Restore to create a backup of your current system files.

      3

      4

      Tip: Always back up before making system changes.

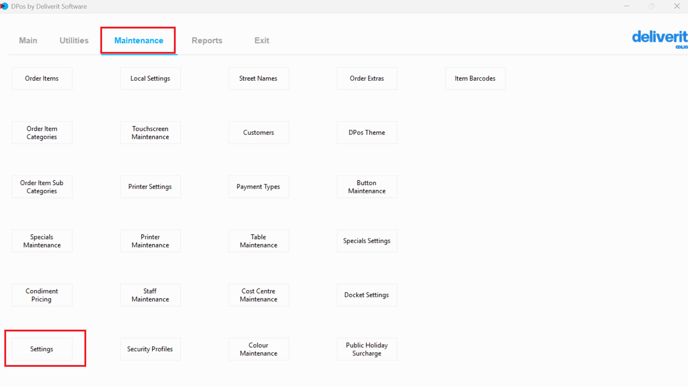

      Go to the maintenance tab and select the global settings.

      18

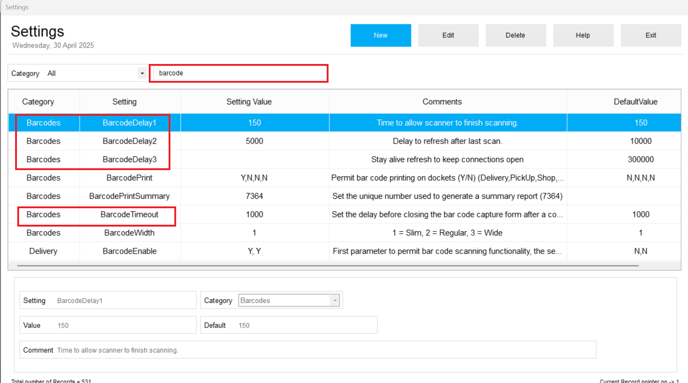

      Search for the barcode in the search bar.

      Make sure the following category settings are configured.

      • Barcode Delay1 (150)
      • Barcode Delay2 (5000)
      • Barcode Delay3  (Blank)
      • Barcode Timeout  (1000)

      19

      Prepare Your Barcode Scanner

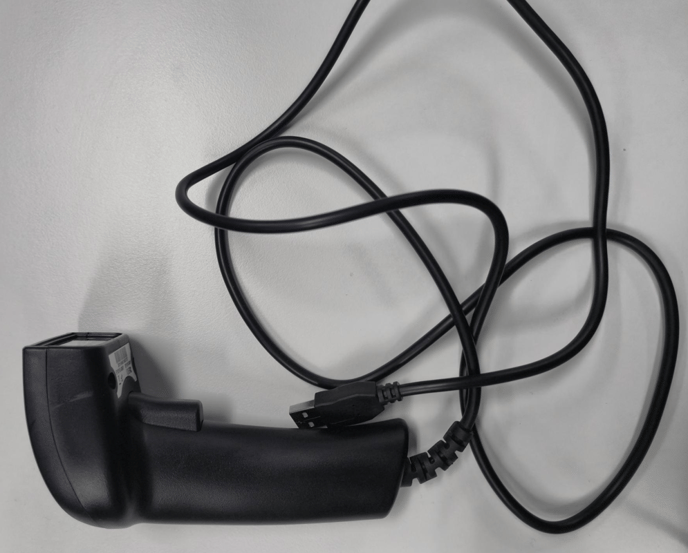

      • Make sure you have a Windows-compatible USB generic barcode scanner connected to your computer. (Example Below)
      5

      Enable Barcode Reader Settings

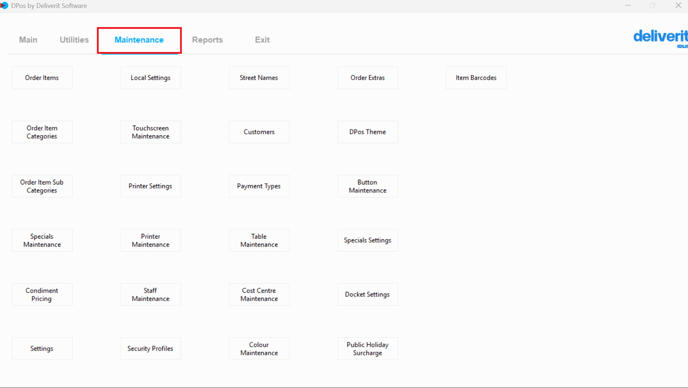

      • Go to the Maintenance tab.

      6

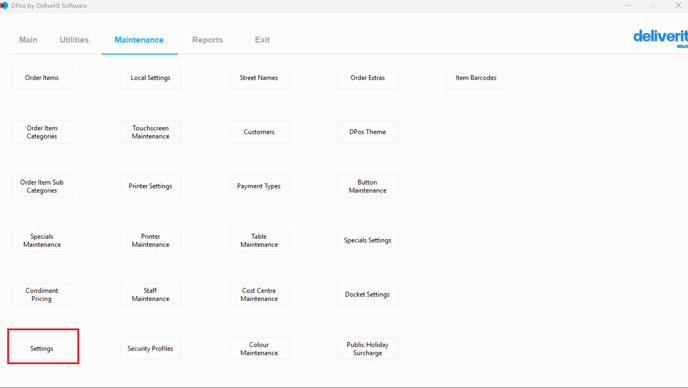

      • Select Settings.
      7

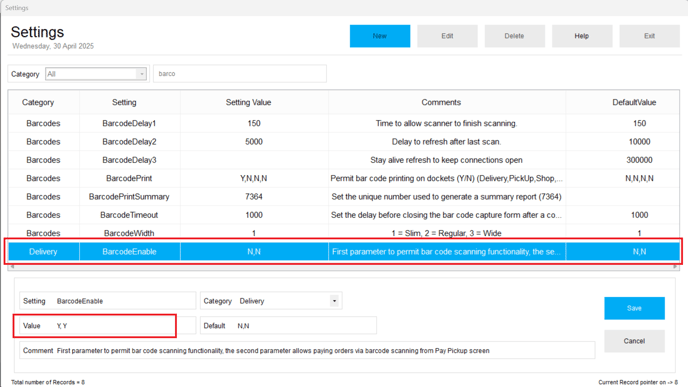

      • Find and enable the Barcode Enable under the global settings.
      8

      Assign Barcodes to Items

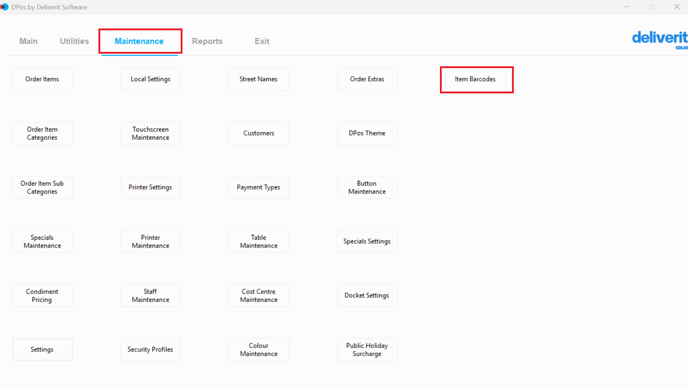

      • In the Maintenance menu, click Item Barcode.
      10

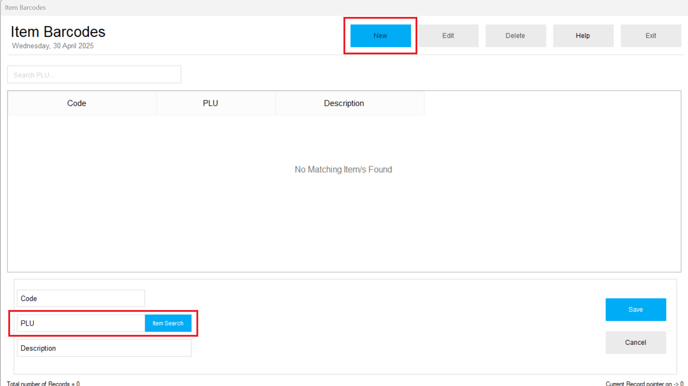

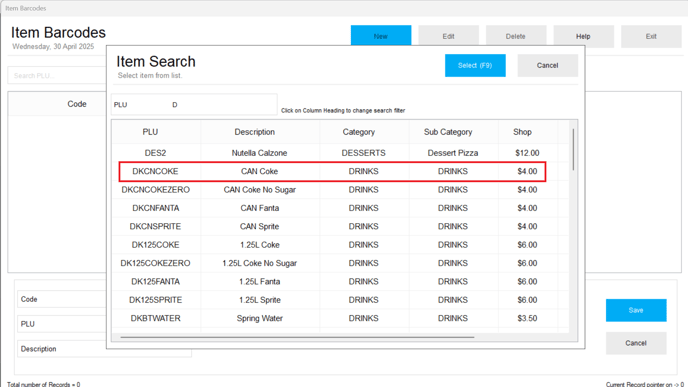

      • Select the New button and click the Item Search.

      11

      12



      15

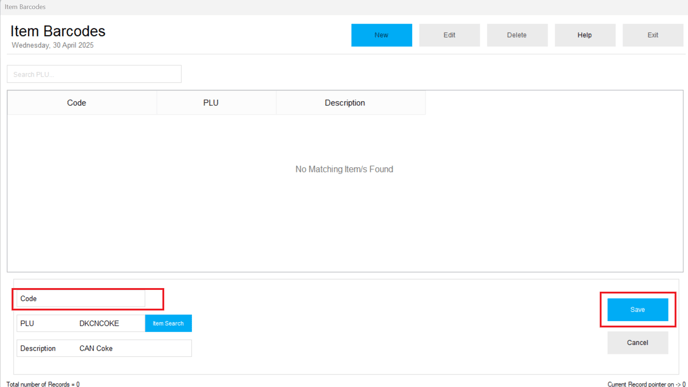

      Position your cursor in the Scan field, then scan your item - the value will populate automatically.


      Save the Code


      Test Barcode Scanning

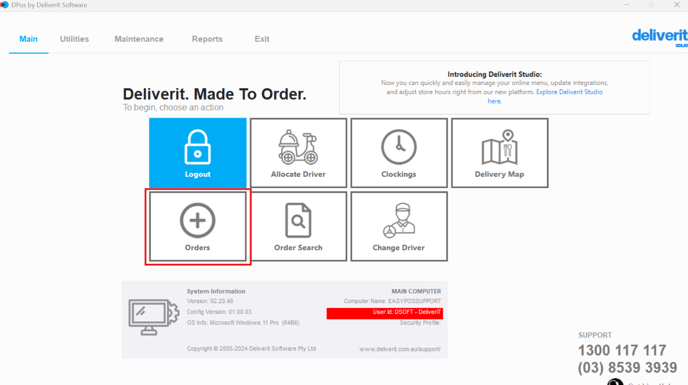

      • Go to the Order Taking screen.
      17

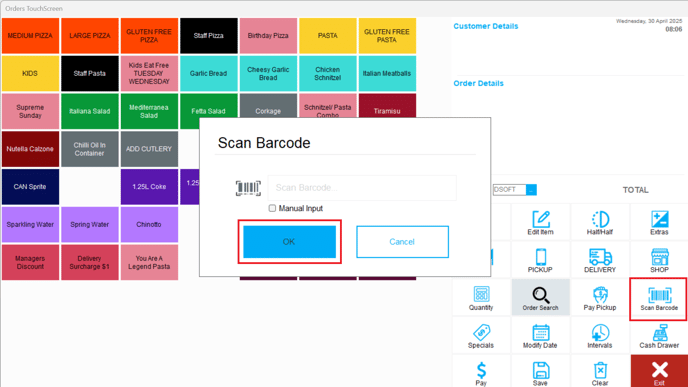

      • Use the barcode scanner to scan an item and verify that it appears correctly in the order list.

      Note: Multiple items can be scanned consecutively without interruption.

      16

      By following these steps, you will be able to successfully enable and use a barcode reader in DPOS for faster and more accurate item scanning. If you require further assistance, please contact our application support team.
