      How to Add Store Logo to Docket Printer (Thermal printers only)

      Adding your store logo to your docket printer is a great way to personalize receipts and strengthen your brand. Follow these simple steps to ensure your logo prints correctly.

      Adding Your Store Logo to Docket Printer

      ✅ Prepare a black-and-white logo image in PNG, JPG, or BMP format
      ✅ Save the logo to your computer
      ✅ Log in to DPOS
      ✅ Go to Maintenance > Docket Settings
      ✅ Click the Headers and Footers tab
      ✅ Under Logo File Name, click Browse Logo and select your file
      ✅ Confirm the logo preview appears
      ✅ Click Save
      ✅ Print a test docket to ensure the logo prints correctly.


      Prepare Your Logo

      • Choose an image file for your logo.
      • Save the logo to your computer.

      For example:

      10

      Tip: For the best print quality, use a black and white image that is properly sized for your printer.

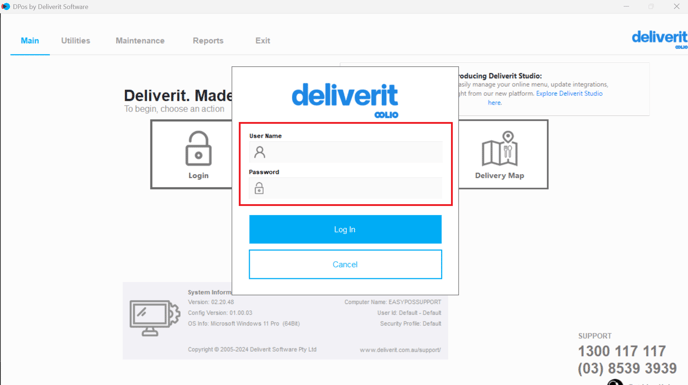

      Log in to DPOS

      • Open DPOS on your PC.
      • Enter your username and password to access the system.

      1

      Open Docket Settings

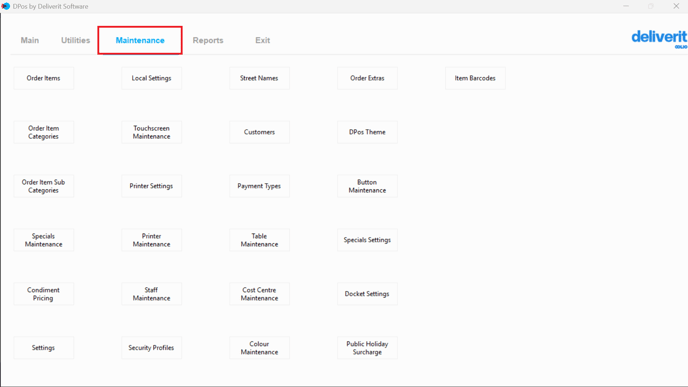

      • Go to the Maintenance tab in the main menu.
      2

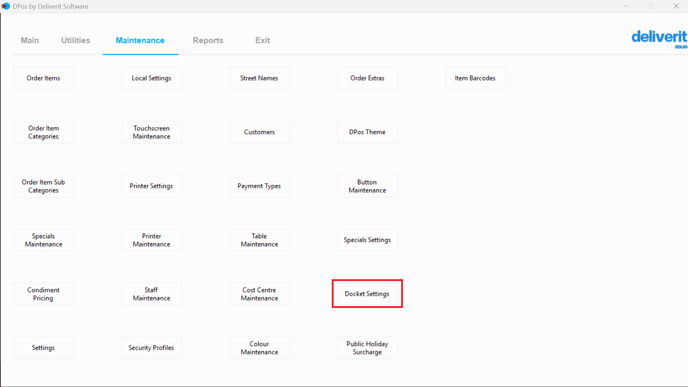

      • Click the Docket Settings button.

      3

      Add Your Logo

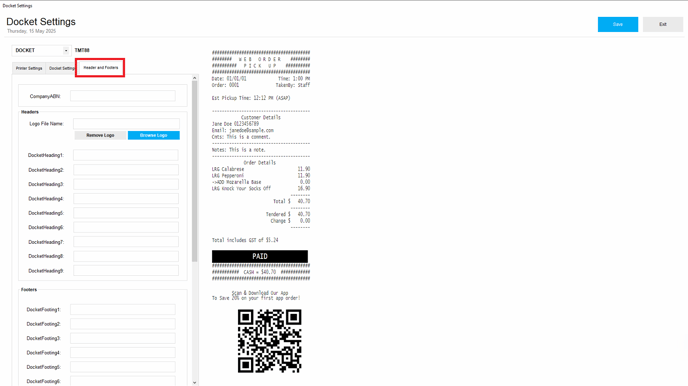

      • Click the Header and Footers tab.

      4

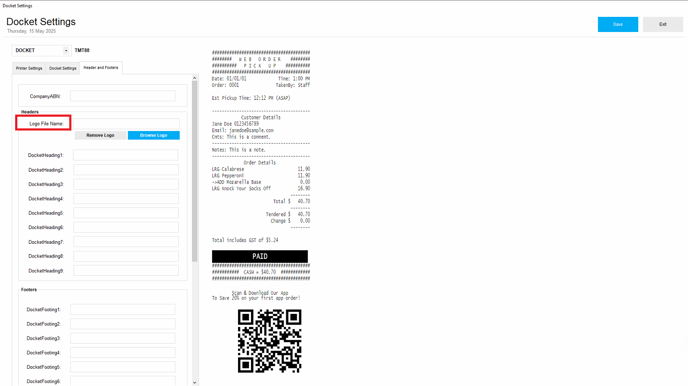

      • Under the Headers section, find the Logo File Name option.

      5

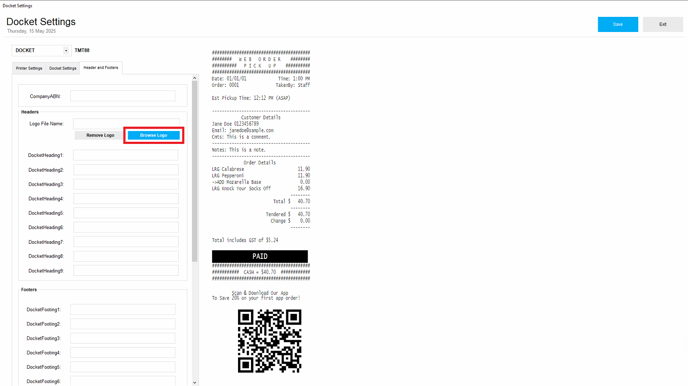

      • Click the Browse Logo to select your saved logo file.
      6

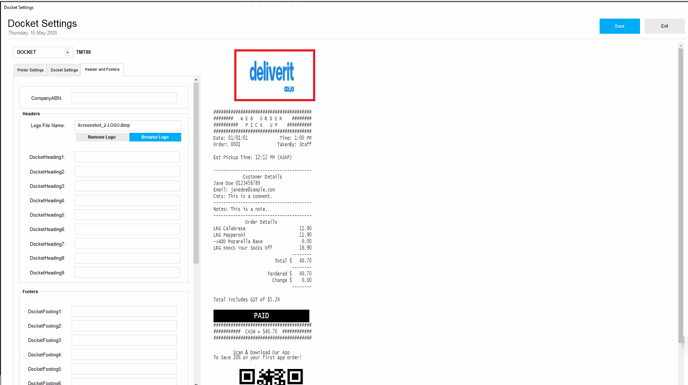

      • A preview of the selected logo will appear on the right side of the page.

      7

      Save and Test

      • Once you’ve selected the correct file, save the settings.
      • Print a test docket to confirm the logo appears as expected.



      Note:

      • File Formats: Make sure your logo is in a supported format like PNG, JPG, or BMP.
      • Print Quality: Using a high-contrast logo ensures a crisp, clear print on thermal paper.
      • Tone: Logo will appear in monotone
      • Troubleshooting: If the logo doesn’t print correctly, double-check the image size and format.



      By following these steps, you will be able to add a store logo to your docket printer efficiently. If you require further assistance, please contact our application support team.
